DVP-EH2 Series 고성능 MPU

페이지 정보

작성자 관리자 댓글 0건 조회 132회 작성일 20-02-26 10:16

본문

- MPU points: 16 / 20 / 32 / 40 / 48 / 64 / 80
 - Max. I/O points: 512
 - Program capacity : 16K Steps
 - Instruction execution speed: 0.24uS (basic instruction)
 - Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol
 - Data register : 10,000 words
 - File register : 10,000 words
 - High-speed pulse output:
  20-point and 32-point models support 2-point 200KHz pulse output (Y0, Y2); 40-point models support A/B
  Phase 200kHz pulse output (Y0, Y1)(Y2, Y3) and 2-point 200KHz pulse output (Y4, Y6).

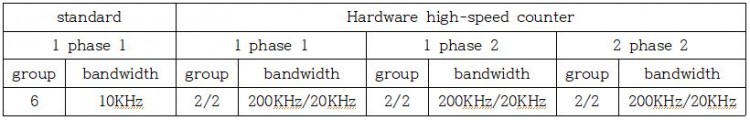

 - Built-in 4 groups of hardware high-speed counters
